4220 BELT DISCHARGE

The belt discharge model is great for filling bunks and commodity sheds. The belt discharge system uses less horsepower than an auger discharge and allows you to throw the feed away from the machine.

PERFECT FOR FARMERS WHO:

  • Want to fill a bunk, commodity shed, or make a pile behind the mill
Contact Us Today For Pricing And Demos

More Details

Specifications
  • 25% moisture 5/16’ screen
  • 1500 to 2000 LB per min
  • 18% moisture 1/4’ screen
  • 1400 to 1800 LB per min
  • 14% moisture 1/8’ screen
  • 1000 to 1400 LB per min
Features

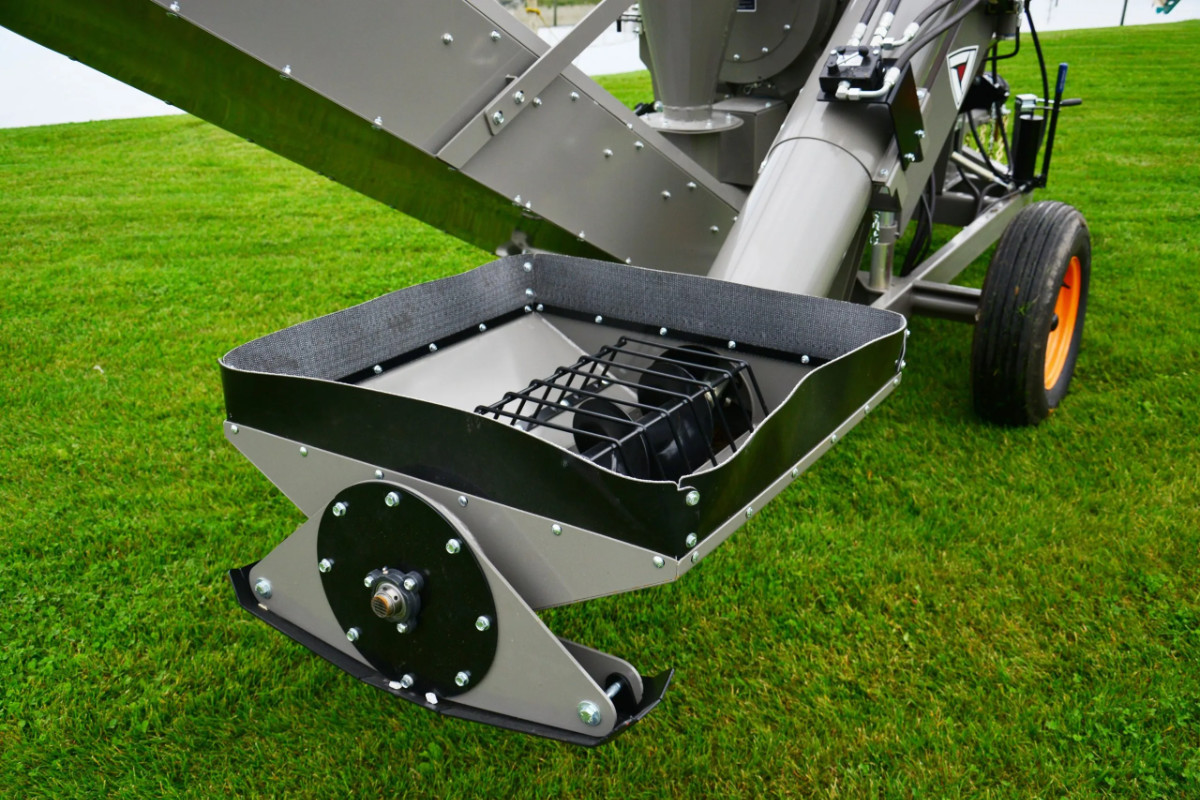

  • 6’ high conveyor
  • Throws feed 8’-12’ from end of conveyor
  • Has hood to route feed directly down at end of conveyor if desired
  • Hydraulically driven feed auger
  • Agitator for high moisture corn
  • Magnet that catches any metal debris
  • 20” wide belt

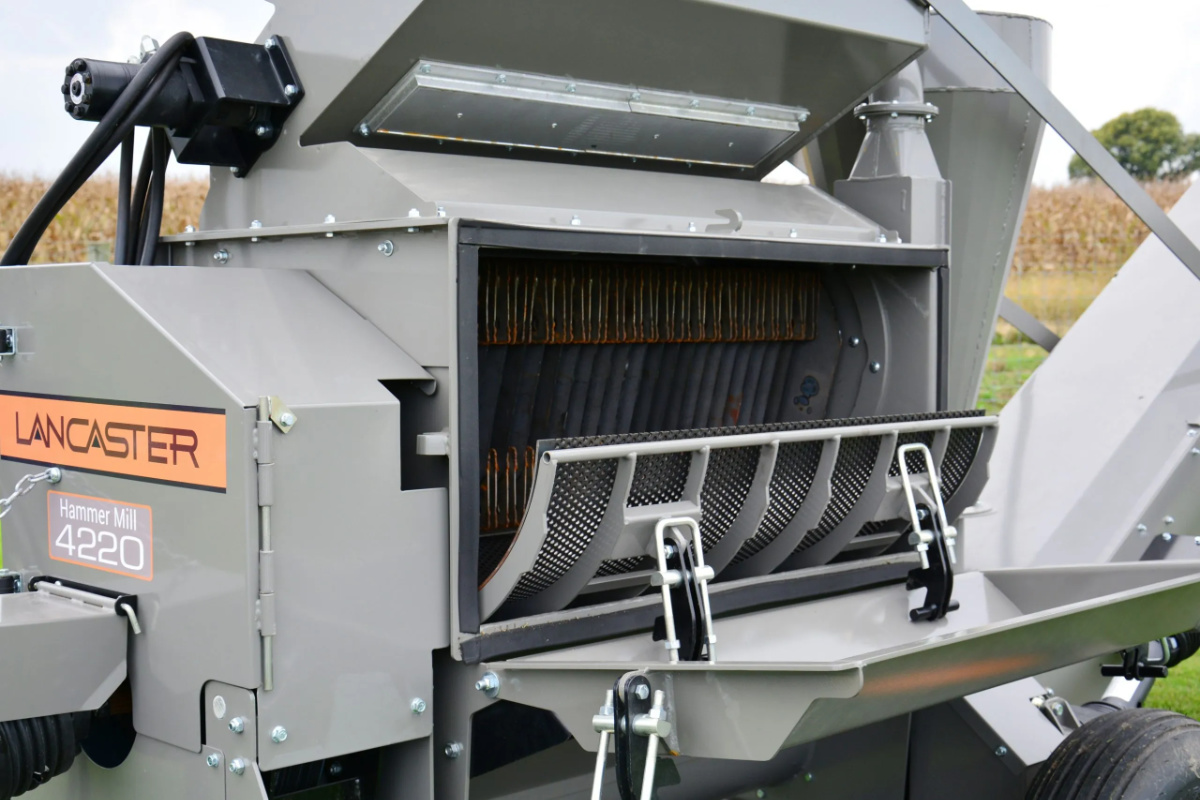

Hammers
  • 150, 1/8″ thick , 4-sided hammers
  • 1″ Diameter Hammer Rod
  • Constructed of hardened alloy steel and hard – faced for longevity

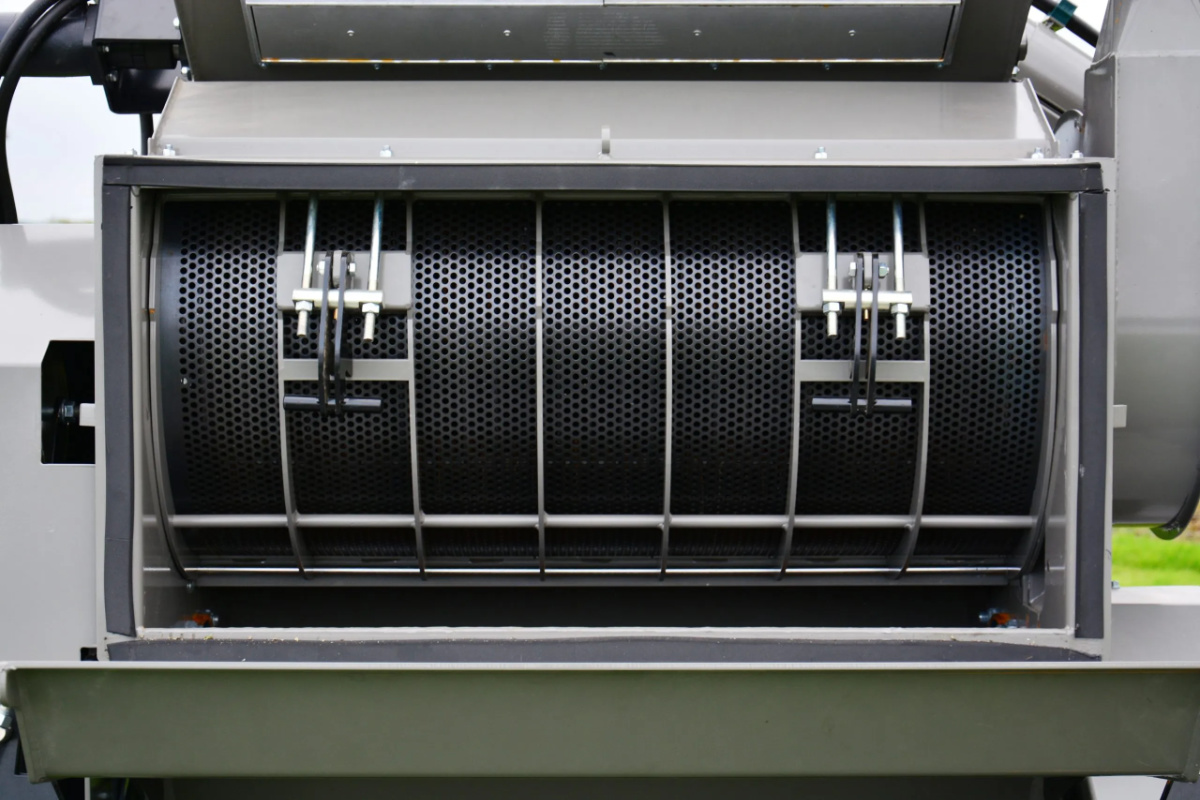

Screens
  • Standard screen hole size: 1/4″, 5/16″, and 3/8″ (other sizes available)
  • Productivity:
    • Moisture of 25% to 28%, Screen size of 5/16″. 200 hp = 1 ton per minute
    • Moisture of 13% to 15% , Screen size of 1/8″. 200 hp = 1 ton every 2 to 4 minutes
    • Hammer Mill production will vary depending on three factors: Moisture in grain, screen size, and horsepower.
Available Screen Sizes
  • 3/32”
  • 7/64”
  • 1/8”
  • 5/32”
  • 3/16”
  • 1/4”
  • 5/16”
  • 3/8”
  • 1/2”
  • 1”
