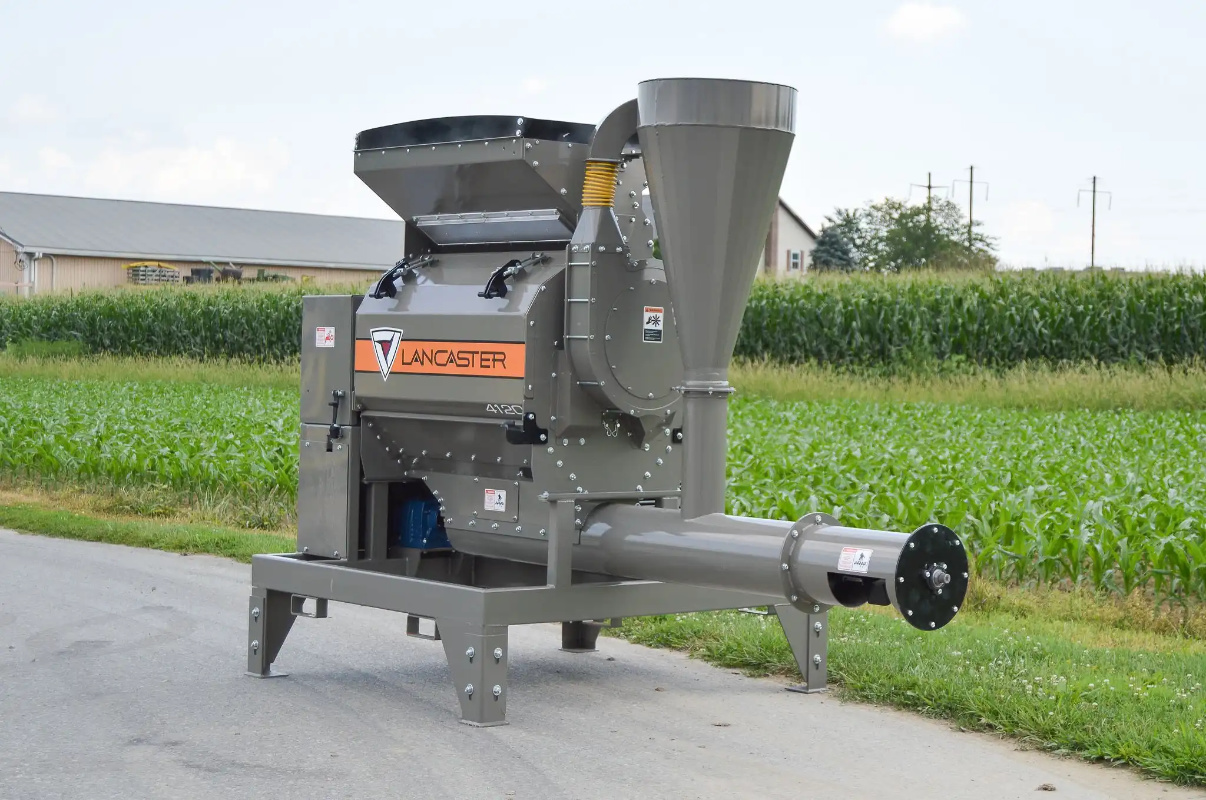

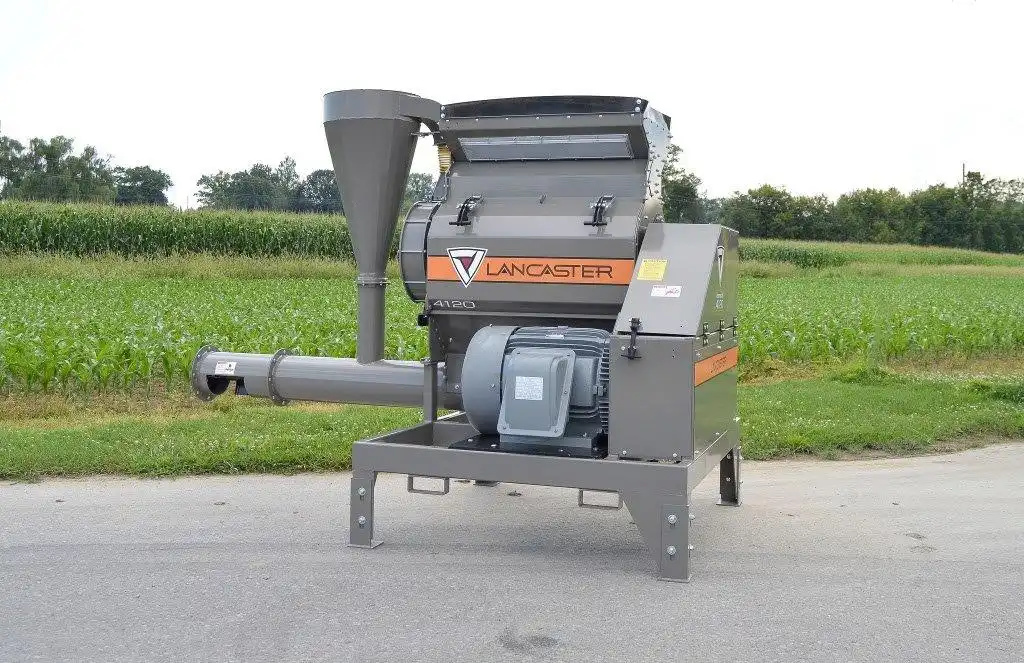

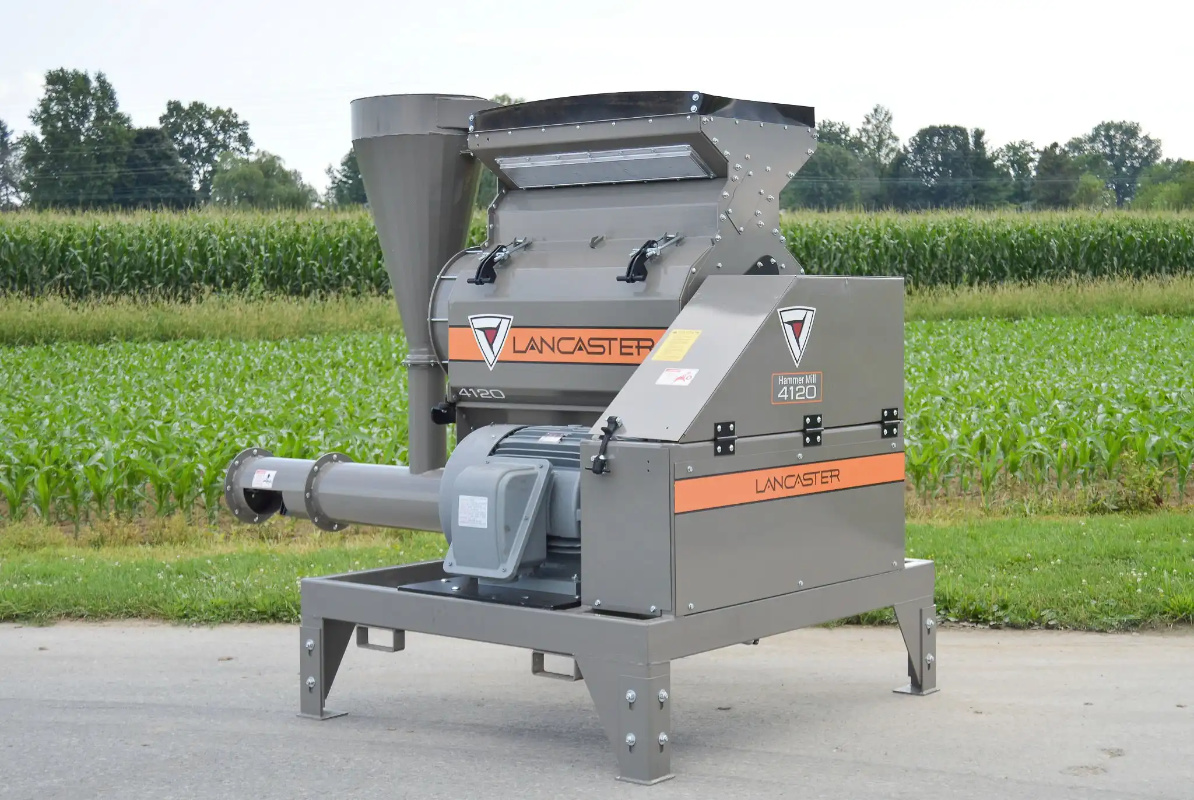

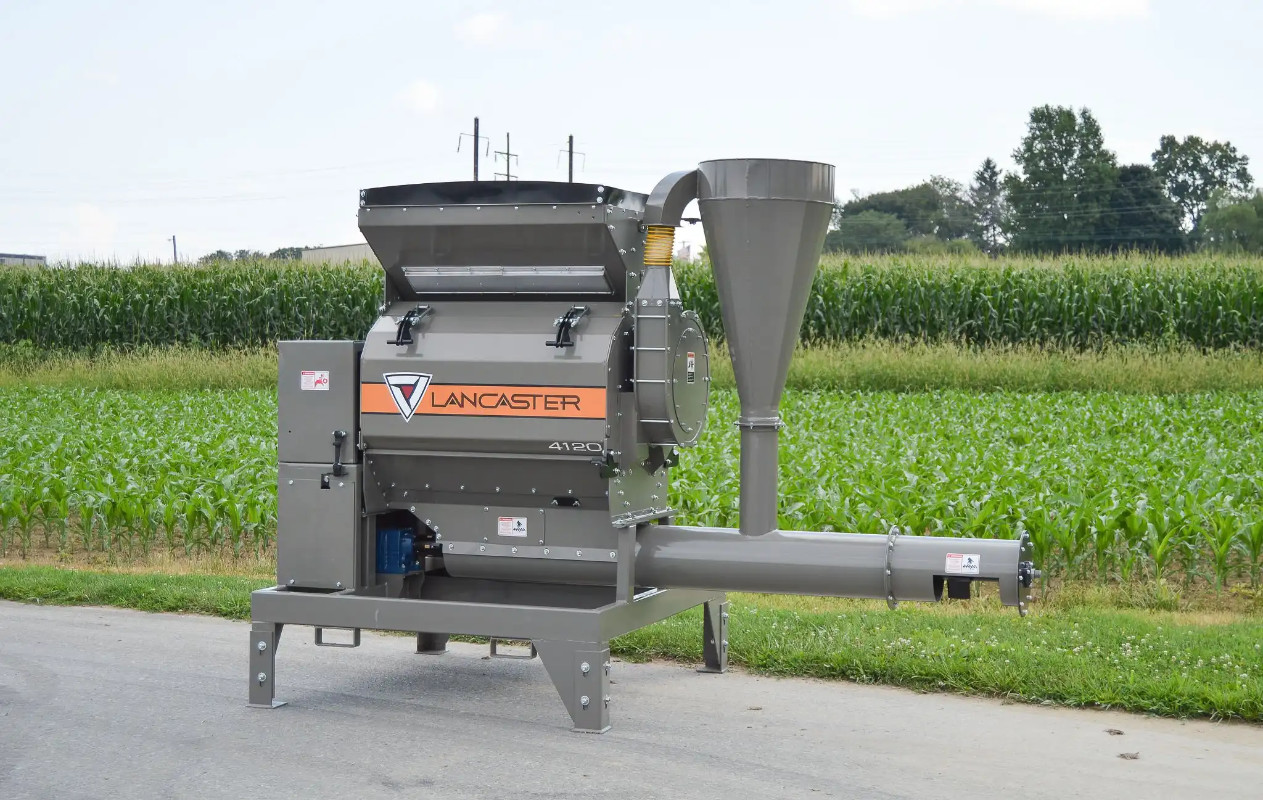

MODEL 4120 – STATIONARY MODEL

The electric stationary mill gives you control of your entire feeding process! Save money on feeding costs and have peace of mind about the quality of feed that your animals are eating. Grind your own corn on demand and to the particle size that your nutritionist recommends.

PERFECT FOR FARMERS WHO:

  • Want to grind their own corn with an automated system
  • Need the ability to grind inside
Contact Us Today For Pricing And Demos

More Details

Specifications
  • Horsepower required: 75 to 125Hp electric motor
  • 25% moisture 5/16’ screen
  • 1500 to 2000 LB per min
  • 18% moisture 1/4’ screen
  • 1400 to 1800 LB per min
  • 14% moisture 1/8’ screen
  • 1000 to 1400 LB per min
Features
  • Discharge auger length can be customized for your installation requirements.
  • Magnet that catches any metal debris.
Hammers
  • 150, 1/8″ thick , 4-sided hammers
  • Constructed of hardened alloy steel and hard – faced for longevity
Screens
  • Standard screen hole size: 1/4″, 5/16″, and 3/8″ (other sizes available)
  • Productivity:
    • Moisture of 25% to 28%, Screen size of 5/16″. 200 hp = 1 ton per minute
    • Moisture of 13% to 15% , Screen size of 1/8″. 200 hp = 1 ton every 2 to 4 minutes
    • Hammer Mill production will vary depending on three factors: Moisture in grain, screen size, and horsepower.
Available Screen Sizes
  • 3/32”
  • 7/64”
  • 1/8”
  • 5/32”
  • 3/16”
  • 1/4”
  • 5/16”
  • 3/8”
  • 1/2”
  • 1”
