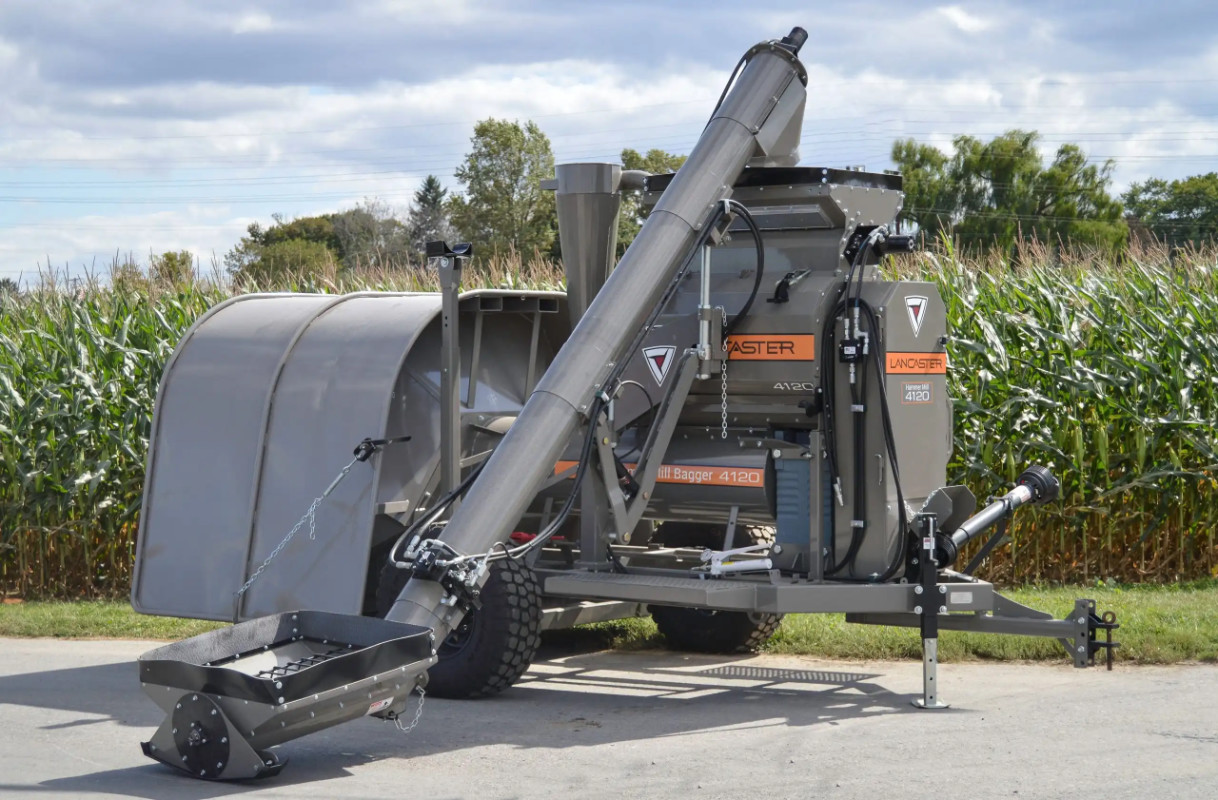

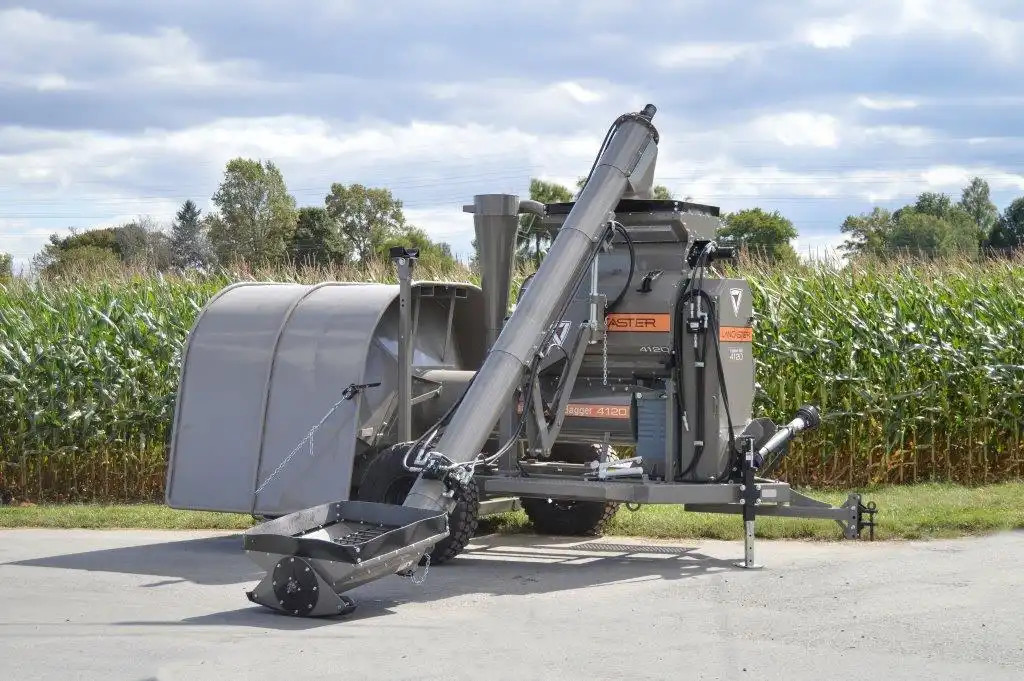

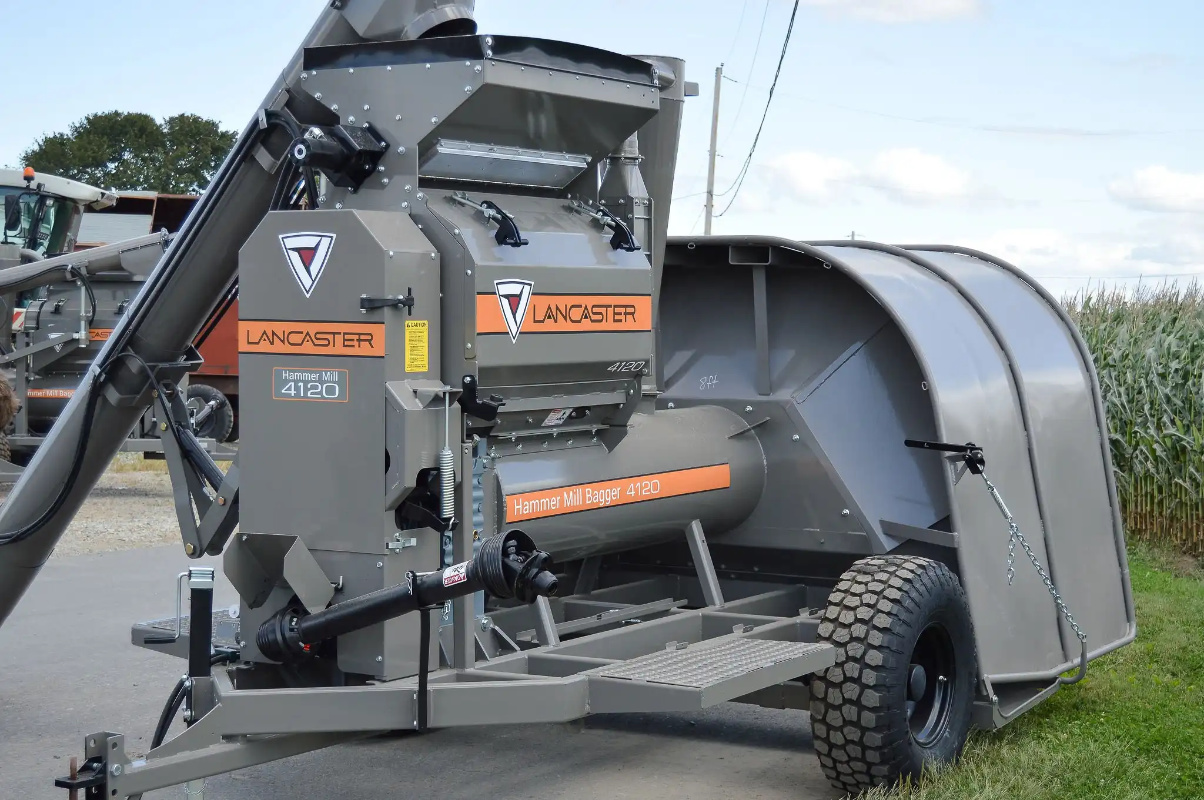

MODEL 4120 – HAMMER MILL BAGGER

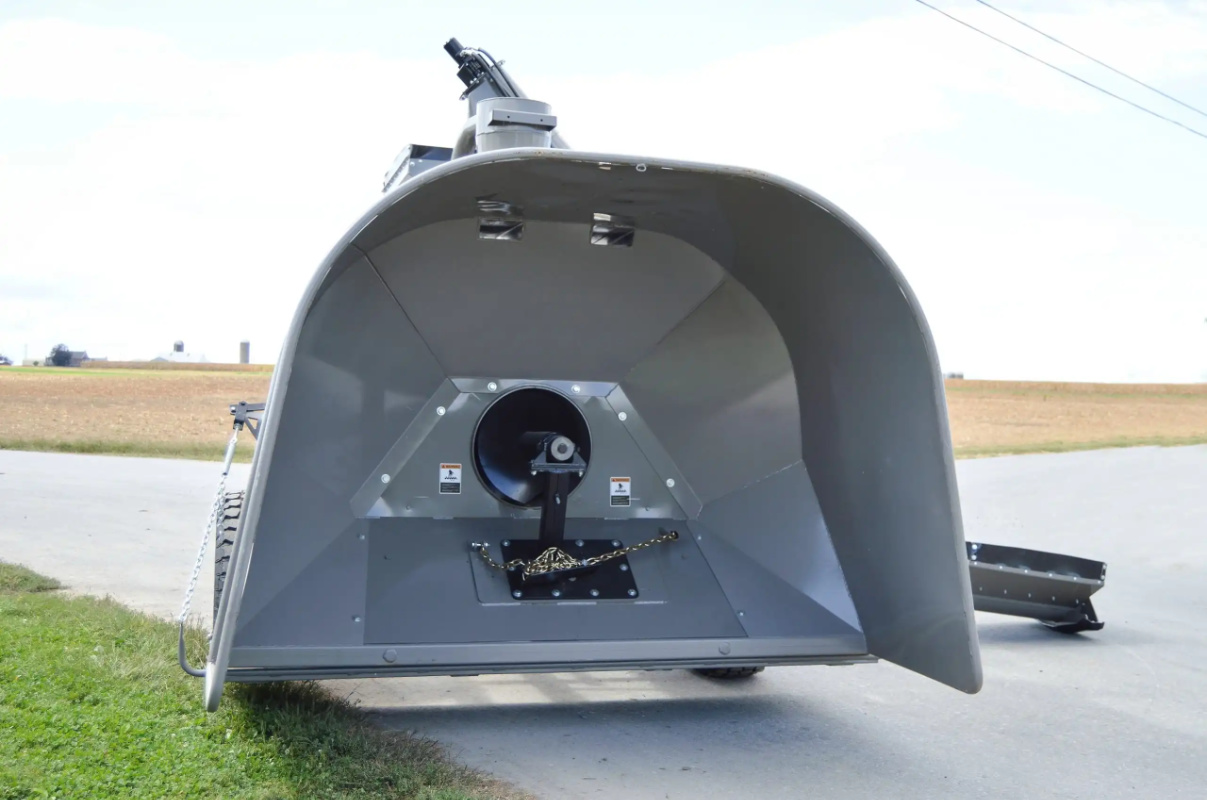

All in one bagger/grinder . Makes grinding and grain storage simple. Comes with 6′, 8′, 10′, and 12′ hoop option. Hoops are designed for easy installation.

PERFECT FOR FARMERS WHO:

  • Would like to cut costs by grinding and bagging their own grain
  • Want to use a single machine to handle the workload
  • Need to grind and store high-moisture corn or other feed grain
Contact Us Today For Pricing And Demos

More Details

Specifications
  • 25% moisture 5/16’ screen
  • 1500 to 2000 LB per min
  • 18% moisture 1/4’ screen
  • 1400 to 1800 LB per min
  • 14% moisture 1/8’ screen
  • 1000 to 1400 LB per min
Features

  • 18” packing auger driven by a reliable reduction gear box to deliver high torque, which results in a tightly packed bag.

    • Few wear components
    • Hydraulically driven feed auger
    • Agitator for high moisture corn
    • Towing kit (lights and brake system can be added on
    • Magnet that catches any metal debris
Hammers
  • 150, 1/8″ thick , 4-sided hammers
  • Constructed of hardened alloy steel and hard – faced for longevity
Screens
  • Standard screen hole size: 1/4″, 5/16″, and 3/8″ (other sizes available)
  • Productivity:
    • Moisture of 25% to 28%, Screen size of 5/16″. 200 hp = 1 ton per minute
    • Moisture of 13% to 15% , Screen size of 1/8″. 200 hp = 1 ton every 2 to 4 minutes
    • Hammer Mill production will vary depending on three factors: Moisture in grain, screen size, and horsepower.
Available Screen Sizes
  • 3/32”
  • 7/64”
  • 1/8”
  • 5/32”
  • 3/16”
  • 1/4”
  • 5/16”
  • 3/8”
  • 1/2”
  • 1”
